Production Calculation of Hydro-Extractor, Dryer and Hard Winding

In this article, we will know the production calculation of hydro-extractor, dryer, and hand winding. Firstly we have to know what is hydro-extractor is?

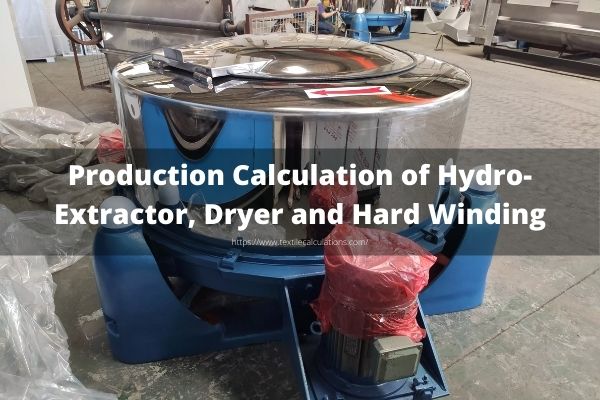

Hydro-extractor:
Hydro-extractor is an important process stage of drying process as for as the yarn quality and process cost are concerned.

Production Calculation of Hydro-Extractor, Dryer and Hard Winding

Production calculation of Hydro-extractor:

…………………………………..Total spindle X 60 X 8 X 3 X efficiency
Production per day = ……………………………………………………………… pcs
………………………………………………………Time per batch

………..48 X 60 X 8 X 3 X 0.85
= …………………………………………. pcs
……………………..8

= 7344 pcs
= 7 tons

Dryer:
Drying is defined as a process where the liquid portion of the fabrics or materials is evaporated.

Belt Speed calculation of Dryer:

…………………….1.2 X power kw
Speed = ……………………………………..
………………Total package X water

……1.2 X 130
= ………………… m/hr
…..45 X 0.45

= 7.7 m/hr

Where, power= 130 kw, total package 45, water 0.45 kg.

Production calculation of Hard Winding:

………………………………No of spindle X m/c speed (m/min) X 60 X 8 X 3 X 1.0936 X efficiency
Production per day = ……………………………………………………………………………………………………..
………………………………………………………..840 X Count X 2.2046

…….510 X 1000 X 60 X 8 X 3 X 1.0936 X 0.85
= ………………………………………………………………..
…………………….840 X 30 X 2.2046

= 12287.95 kg/day

= 12 tons
