Calculation of Package Density in Yarn Dyeing

Package Density in Yarn Dyeing:
Package density has an important effect on yarn dyeing. When packages is too soft then liquor flowing through it will find the course of least resistance and cause channeling, which leaves some parts of the package relatively undyed or lighter. If the packages are wound too hard, a point can be reached where the flow of liquor is impeded to such an extent that poor dying or none may occur. In this article, we will discuss yarn package density in yarn dyeing.

To delve deeper into the nuances of yarn package density and its impact on yarn dyeing processes, consider generating QR codes for quick access to supplementary materials such as detailed diagrams, instructional videos, or scholarly articles. These QR codes can provide additional insights and resources to enhance understanding and optimize dyeing practices in the textile industry.


Calculation of Package Density in Yarn Dyeing

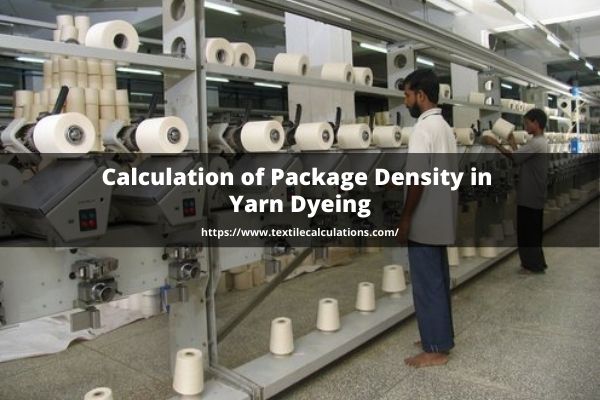

Maintaining package density in yarn dyeing

The ratio of mass and volume is called density.

Density = ρ
Mass = m
Volume = v


m = (Bobbin weight with yarn – Bobbin weight without yarn) gm.
v = π (R12 – R22) × h

R1 = Outer radius of the bobbin (with yarn).
R2 = Inner radius of the bobbin..

Say, for example,

Outer Radius, R1=16.3/2 = 8.15 cm.
Inner Radius, R2 = 6.96/2 =3.48 cm.
Height = 16 cm..

We know = πr2h.

So, total volume, V1 = π R12h
=3.1416 X (8.15) 2 X 16
=3339 cm3

Steel bobbin, V2= π R22h
= 3.1416 X (3.48)2 X16.
= 609 cm3

Original volume = (3339-609) = 2730 cm3

Package Density, ρ = m/v
= (1395-235)/2730
= 0.42 gm/cm3.

Package density in soft winding for cotton must be 0.36 to 0.40 gm/ cm3 and for polyester or CVC, it would be higher than 0.40 gm/cm3.

Calculation of Package Density in Yarn Dyeing

We measure the package density of different bobbins in this section which are:

Count (Ne) Package density (gm/cm3)
20s 0. 387
24s 0. 375
26s 0. 382
28s 0. 35
30s 0. 345
34s 0. 37
40s 0. 378

For filament (Polyester):

Count (denier) Package density (gm/cm3)
30 0. 44
75 0. 376
100 0. 46

For spun yarn:

Count (denier) Package density (gm/cm3)
40/2                               0. 39
50/2 0. 4197

For CVC yarn:

Count (Ne) Package density (gm/cm3)
30s 0. 40
26s 0. 39

You may also like: Calculation of Yarn Package Density

Author of this Article:
Rana Sohel
Executive Engineer
Sunman Textile Mills Ltd. Chittagong
